回到产品介绍页面      蓝牙模组

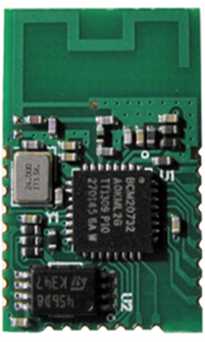

   Broadcom(20736)



                        规格特性:

                        工业级设计
                        采用Broadcom 4.0 SOC芯片BCM20736
                        支持Bluetooth4.0(BLE)标准协议
                        支持UART通信,可变波特率
                        支持CDM命令修改和读取蓝牙参数
                        ARM Cortex™-M3处理器
                        集成PCB板印制天线
                        卓越的接收灵敏度
                        支持低功耗:TBD
                        VDD:1.8~3.6V(建议值3.3V)
                        20.5mm(L) x 13mm(W) x 1.9mm(H)
                        支持蓝牙class2标准
                        通过BQB认证
                        符合ROSH标准
